Create Virtual Machine with Hyper-V Manager on Windows Server 2016

Below we may get step-by-step screenshots,

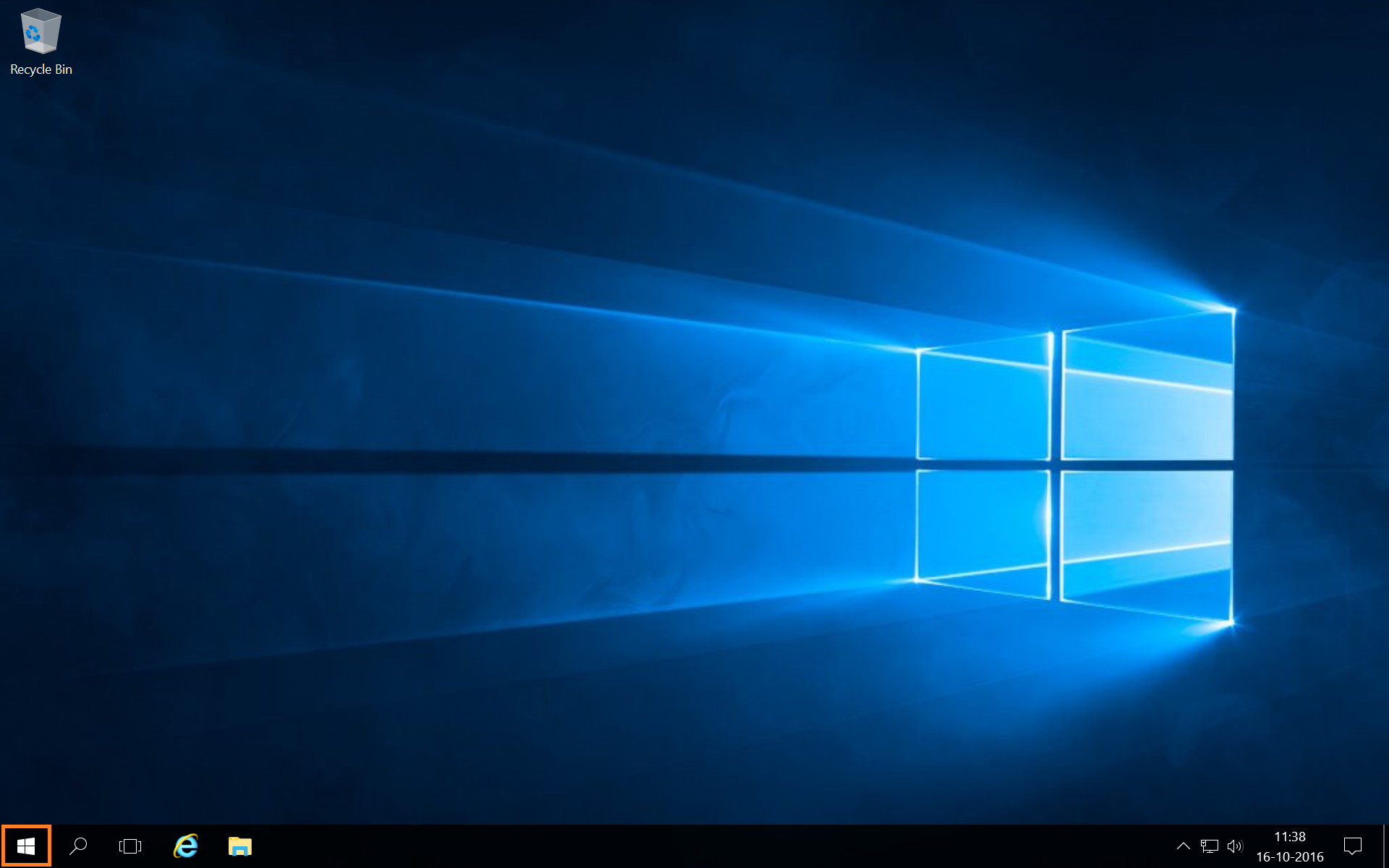

Step 1 - Click on "Start" button.

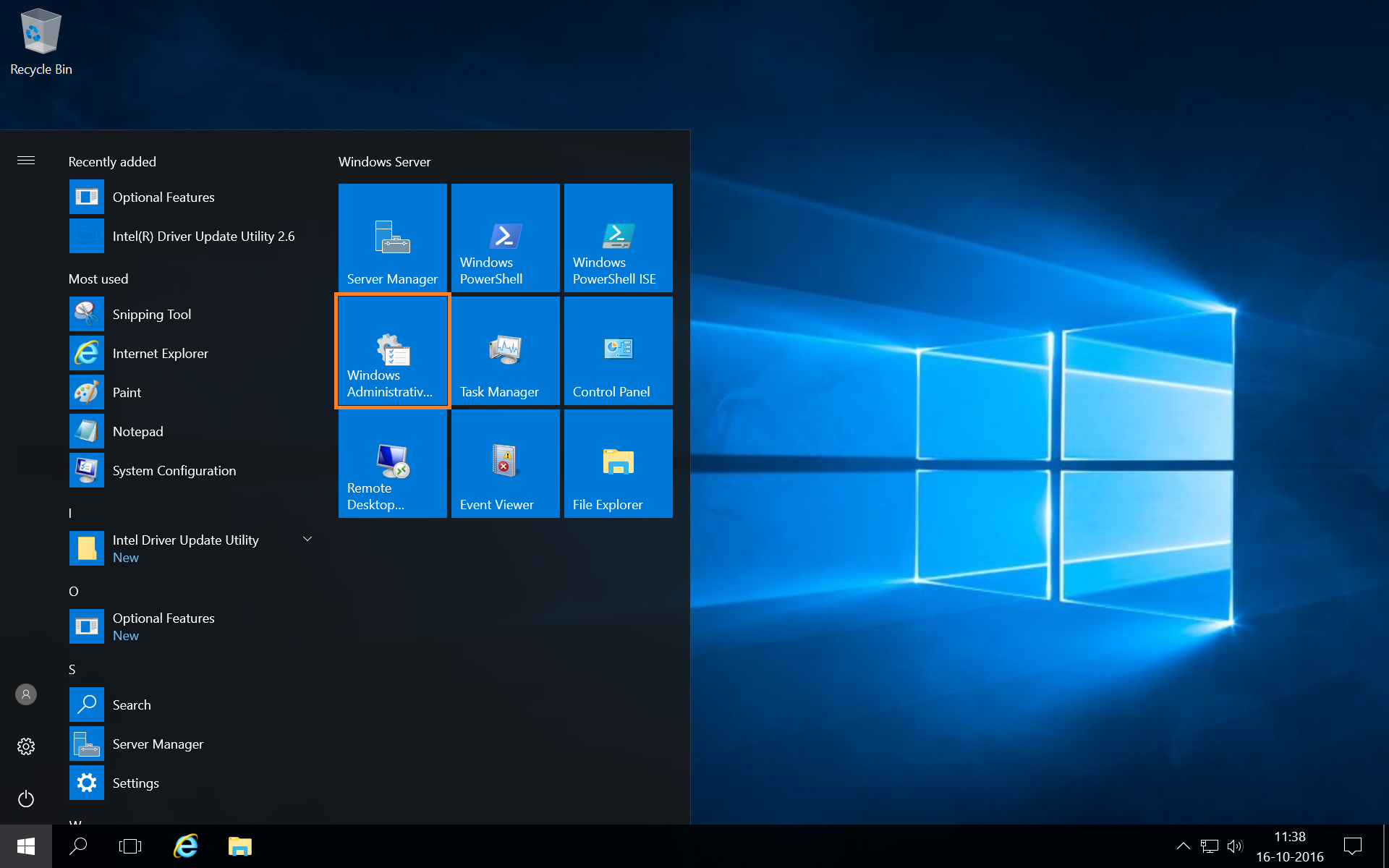

Step 2 - Click on "Windows Administrative Tools".

Step 3 - Double click on "Hyper-V Manager" to open.

Step 4 - Now Hyper-V Manager is opened. Select the same host just under e.g. SKYLAKE or other server in the network by locating and clicking on "Connect to Server..." on the right pane.

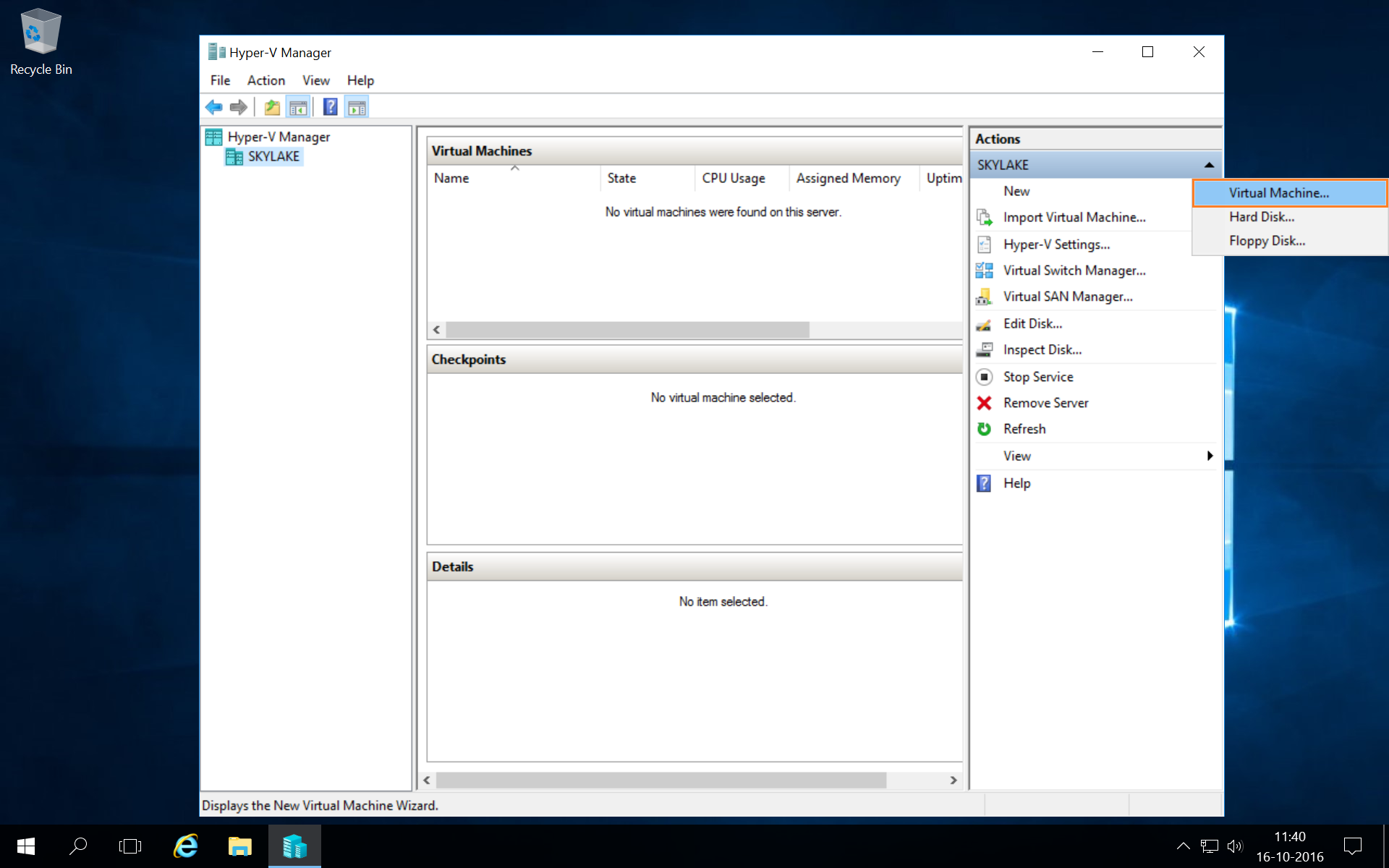

Step 5 - On the right pane, click on "New" then again click on "Virtual Machine".

Step 6 - Click on "Next".

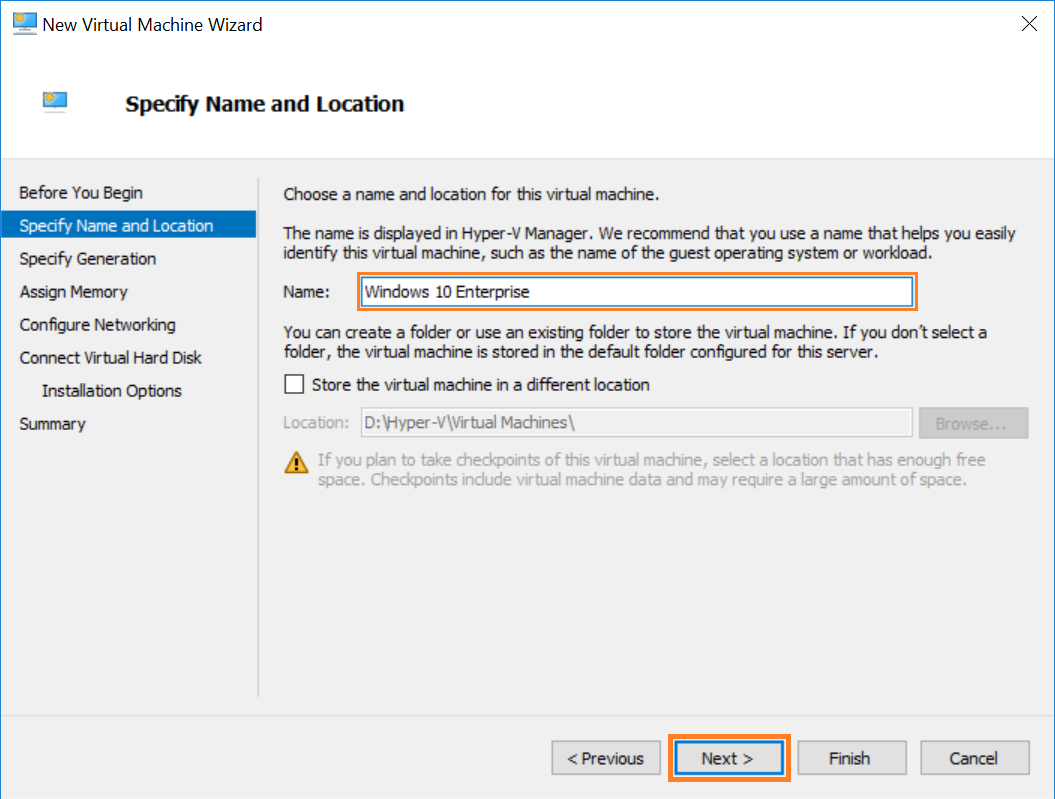

Step 7 - Type a name for virtual machine and click on "Next".

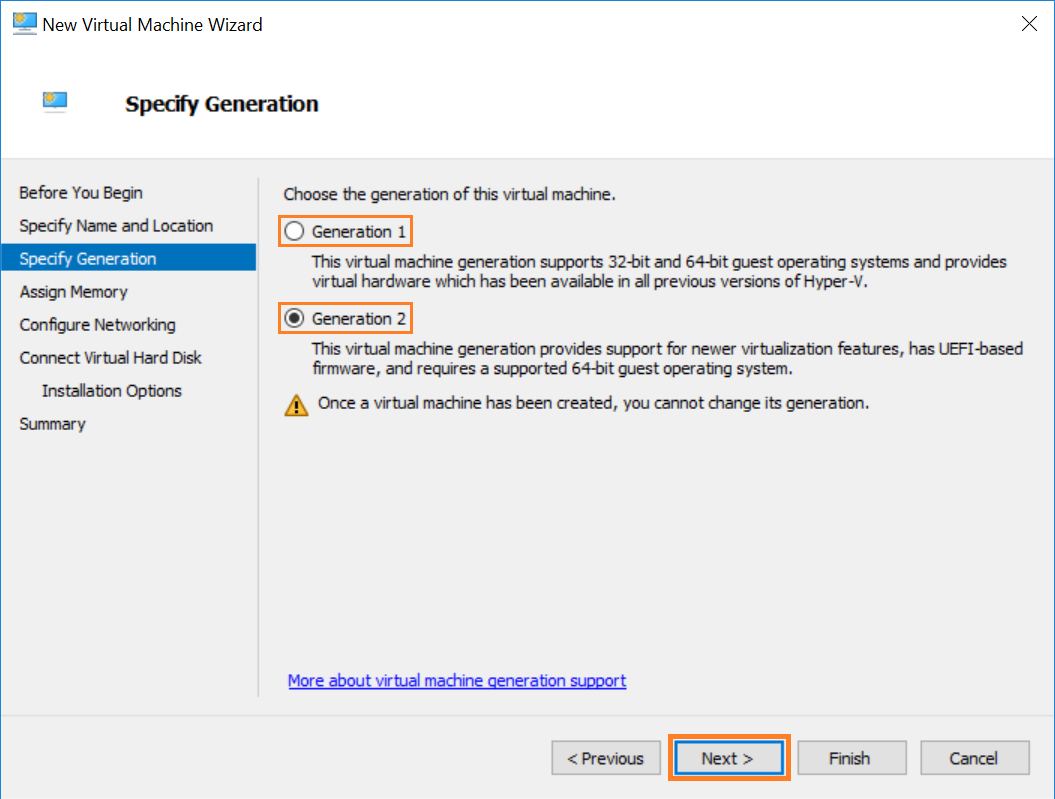

Step 8 - Select appropriate Generation of virtual machine as mentioned on the wizard and click on "Next".

Step 9 - Specify amount of startup memory for virtual machine or if needed choose Dynamic Memory by confirming Tick Mark on the check box and click on "Next".

Step 10 - Click on drop-down menu to choose which network adapter to use with virtual machine.

Step 11 - Select network adapter from the list.

Step 12 - Click on "Next".

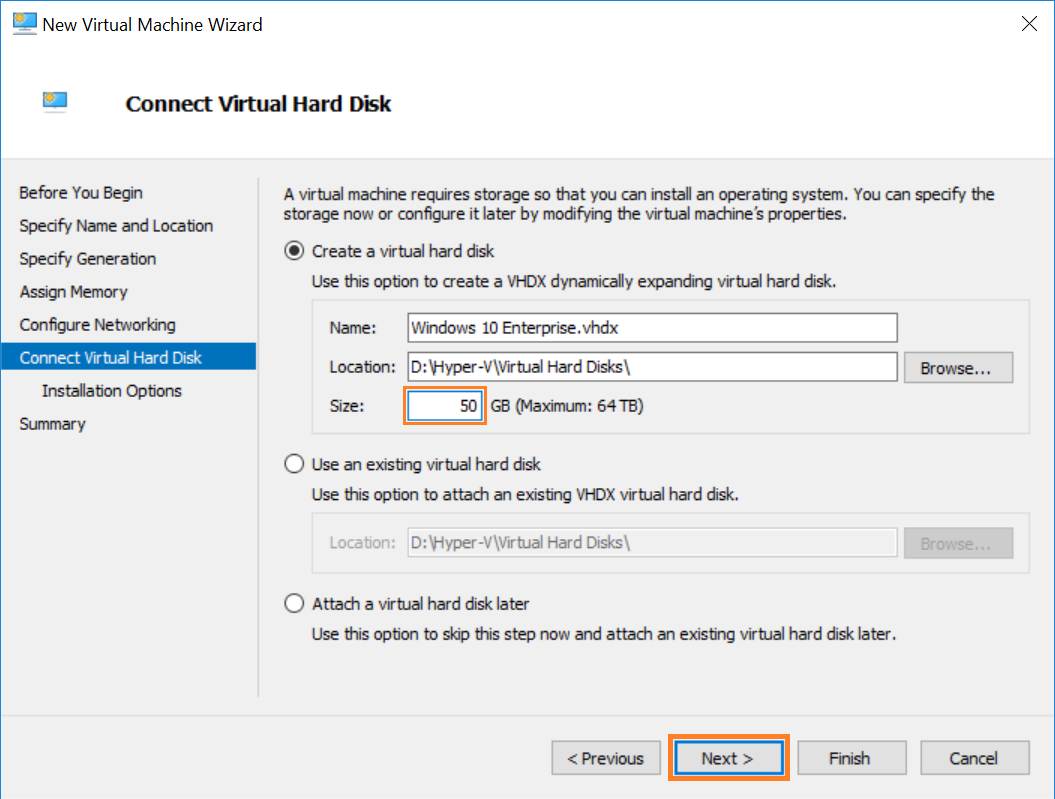

Step 13 - Specify the amount of storage and click on "Next".

Step 14 - Select "Install an operating system from a bootable image file" and click on "Browse..." to locate an ISO Image file(.iso).

Step 15 - Click on "Next".

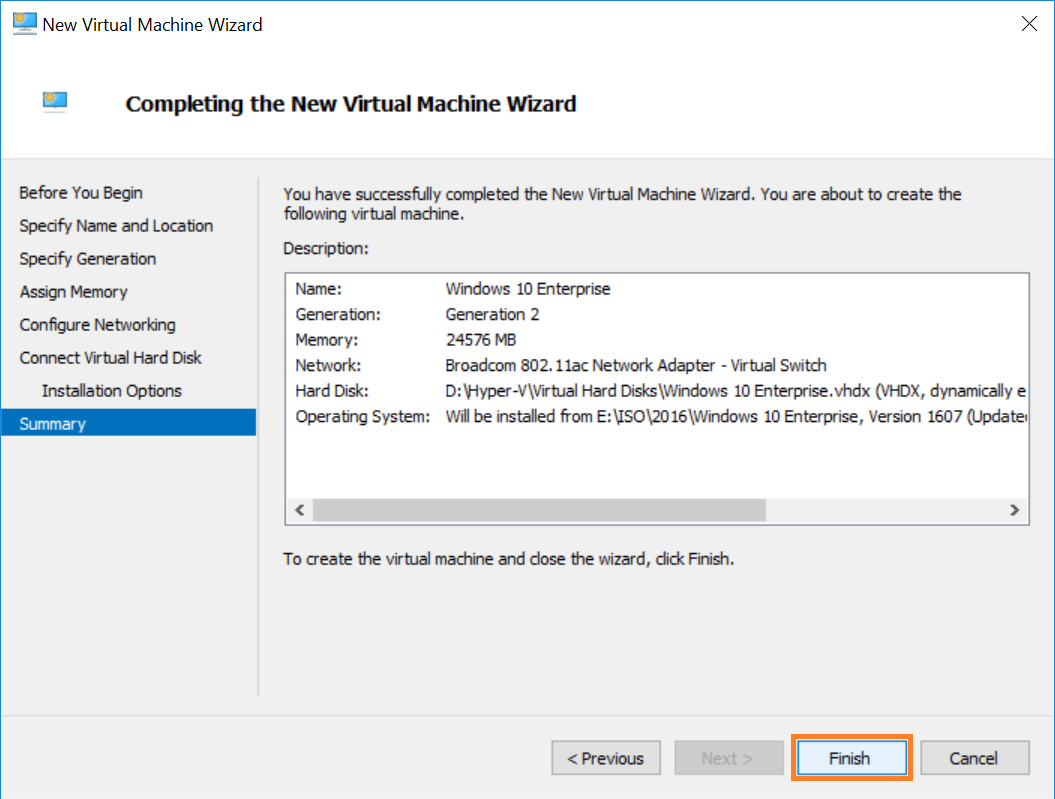

Step 16 - Confirm summary and click on "Finish".

Step 17 - Wait for some time until virtual machine get created.

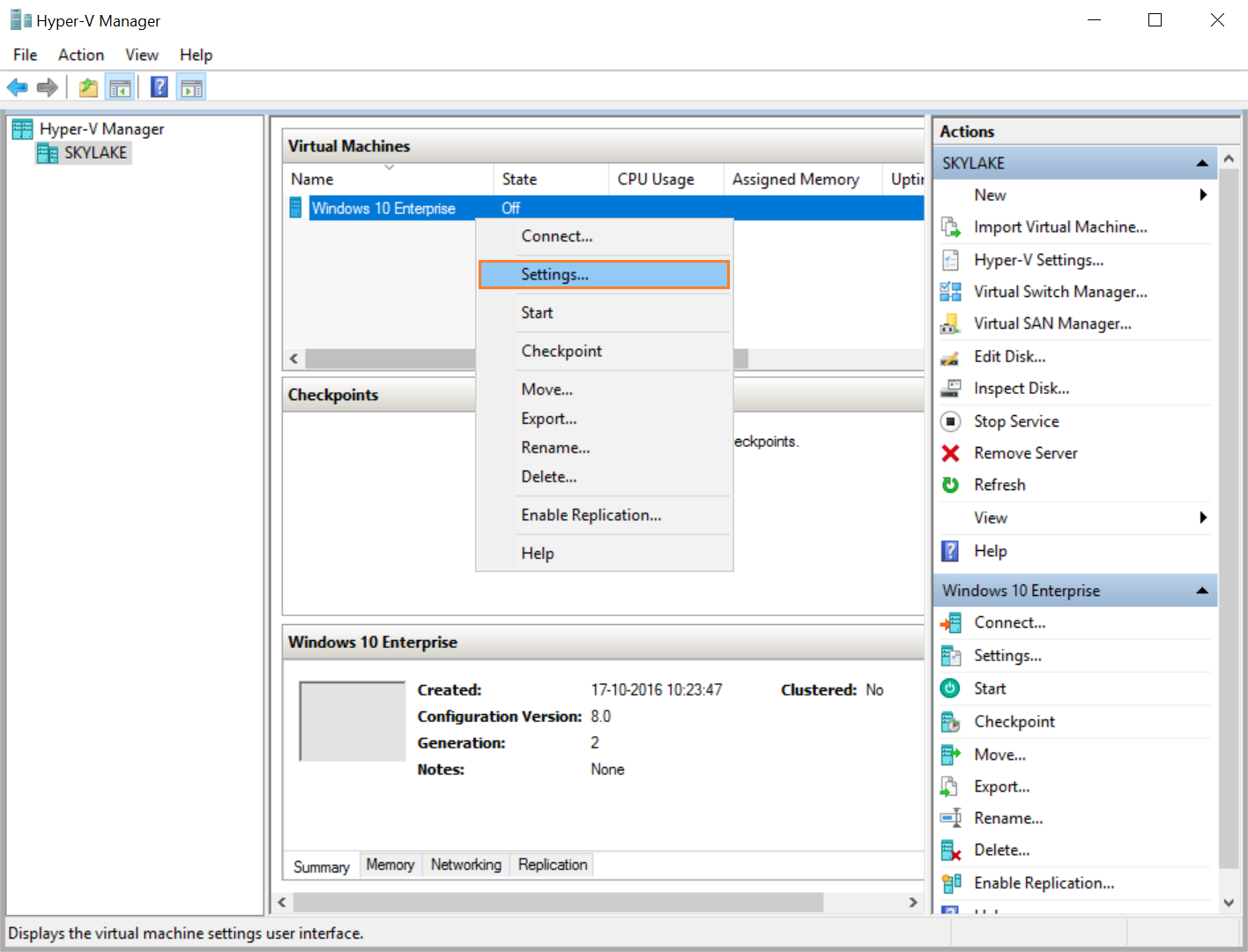

Step 18 - To modify settings of virtual machine configuration, right-click on virtual machine and click on "Settings...".

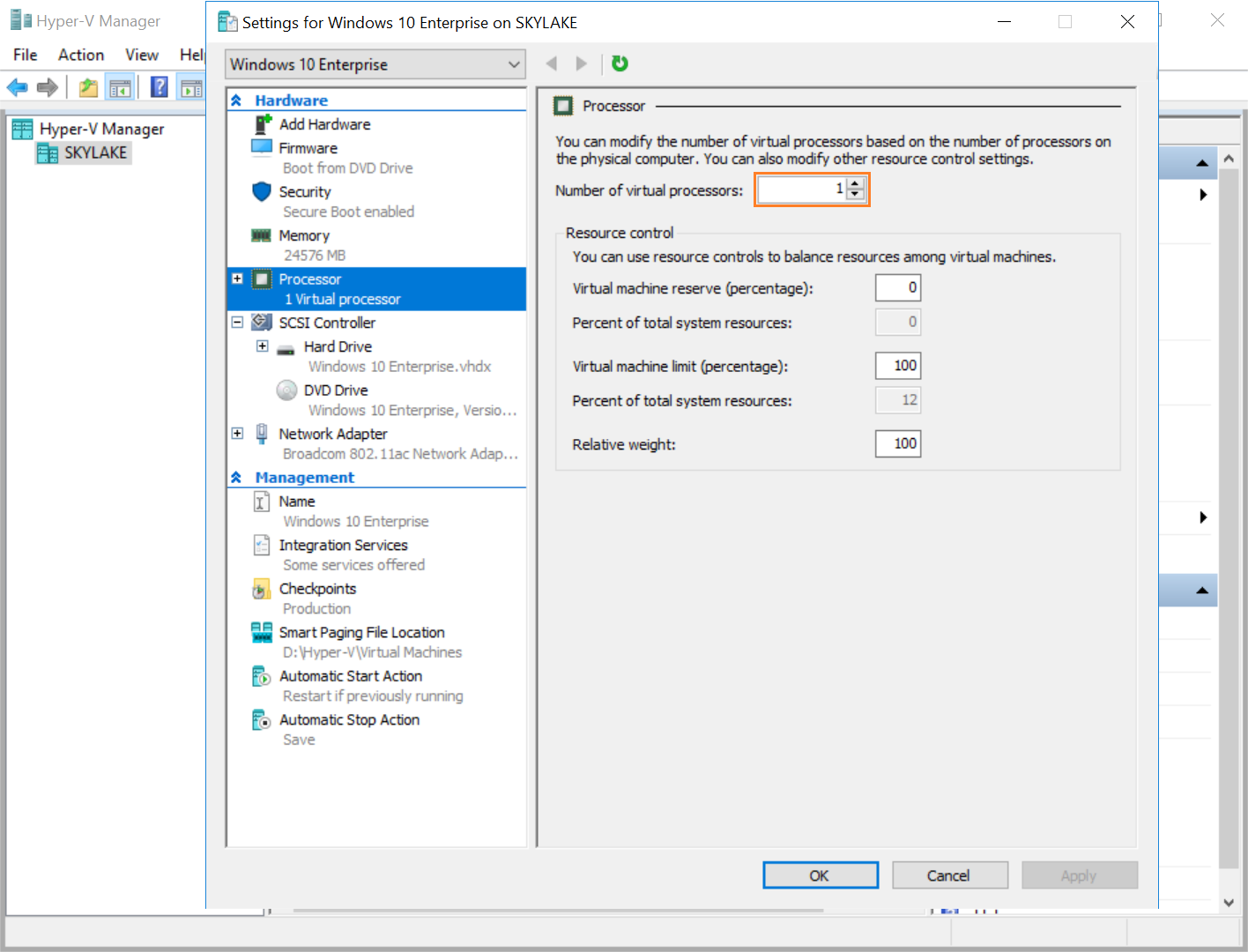

Step 19 - For example - To increase the number Virtual processor, click on "Processor".

Step 20 - Modify the number of virtual processors based on the number of processors on the physical computer.

Step 21 - Click on "Apply".

Step 22 - Once done with all settings, click on "OK".

Step 23 - Select virtual machine and on the right pane, click "Start".

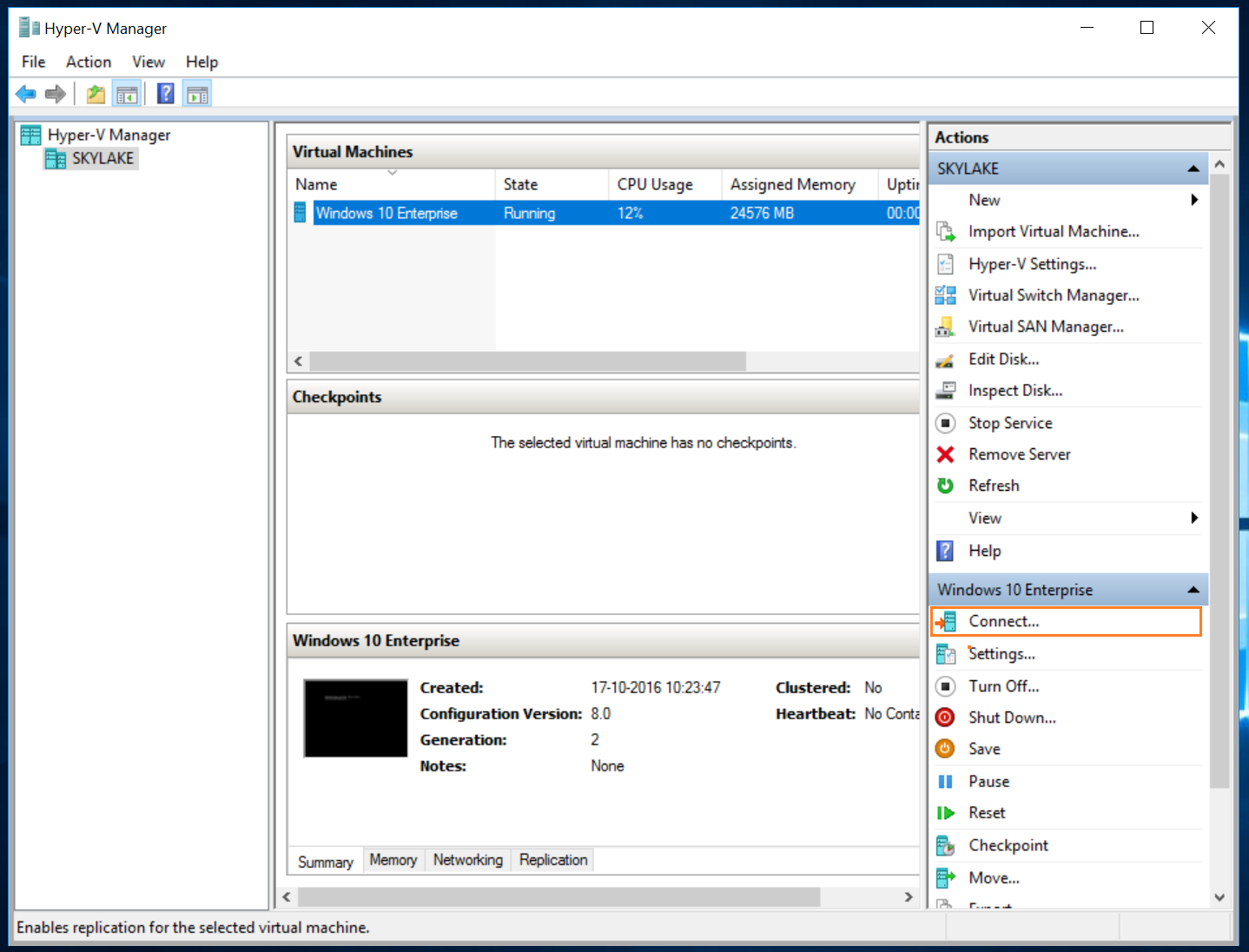

Step 24 - Select virtual machine and on the right pane, click "Connect...".

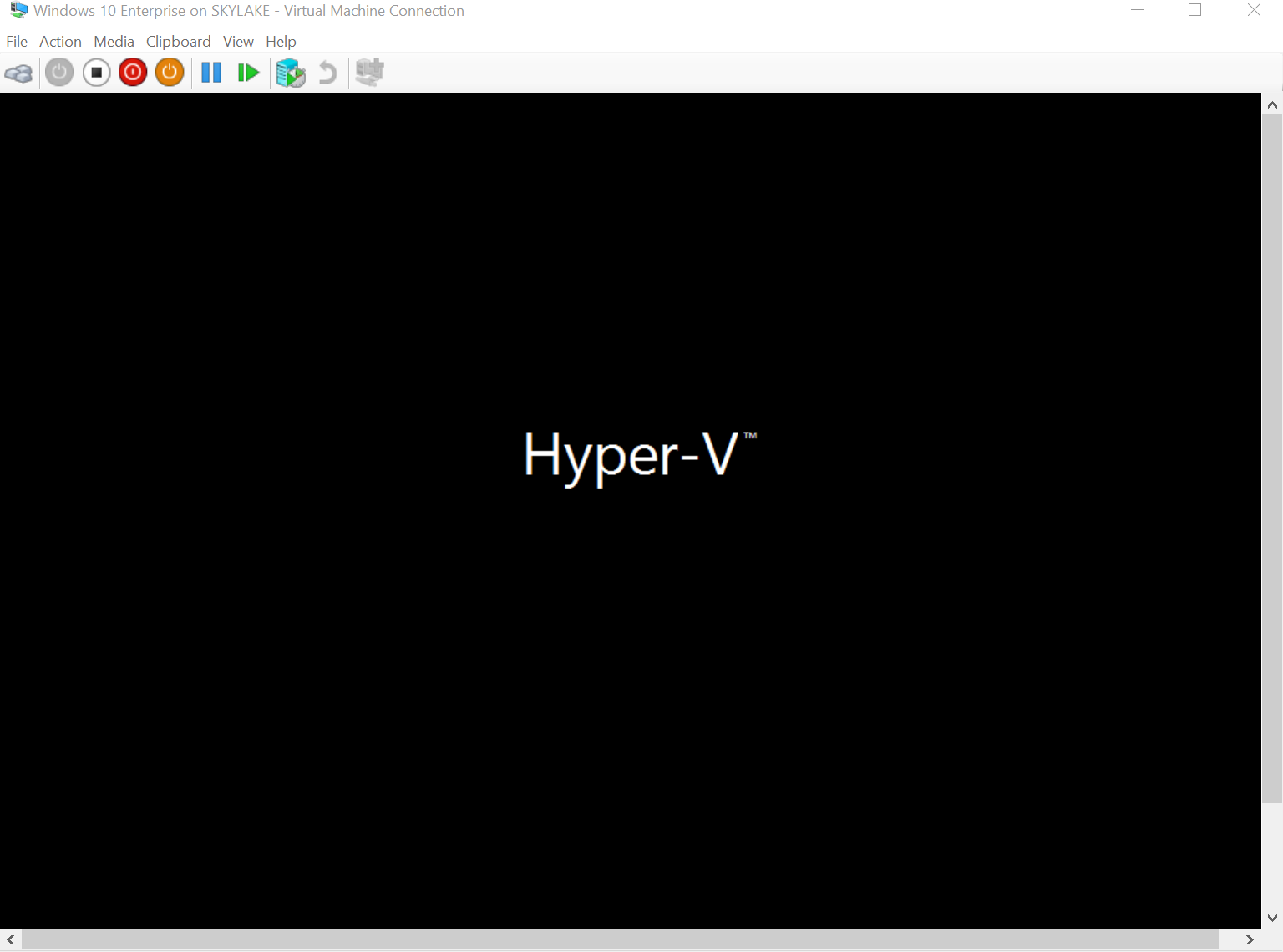

Step 25 - Virtual Machine booted with the ISO file selected.

Step 26 - Wait for a some time to get it load.

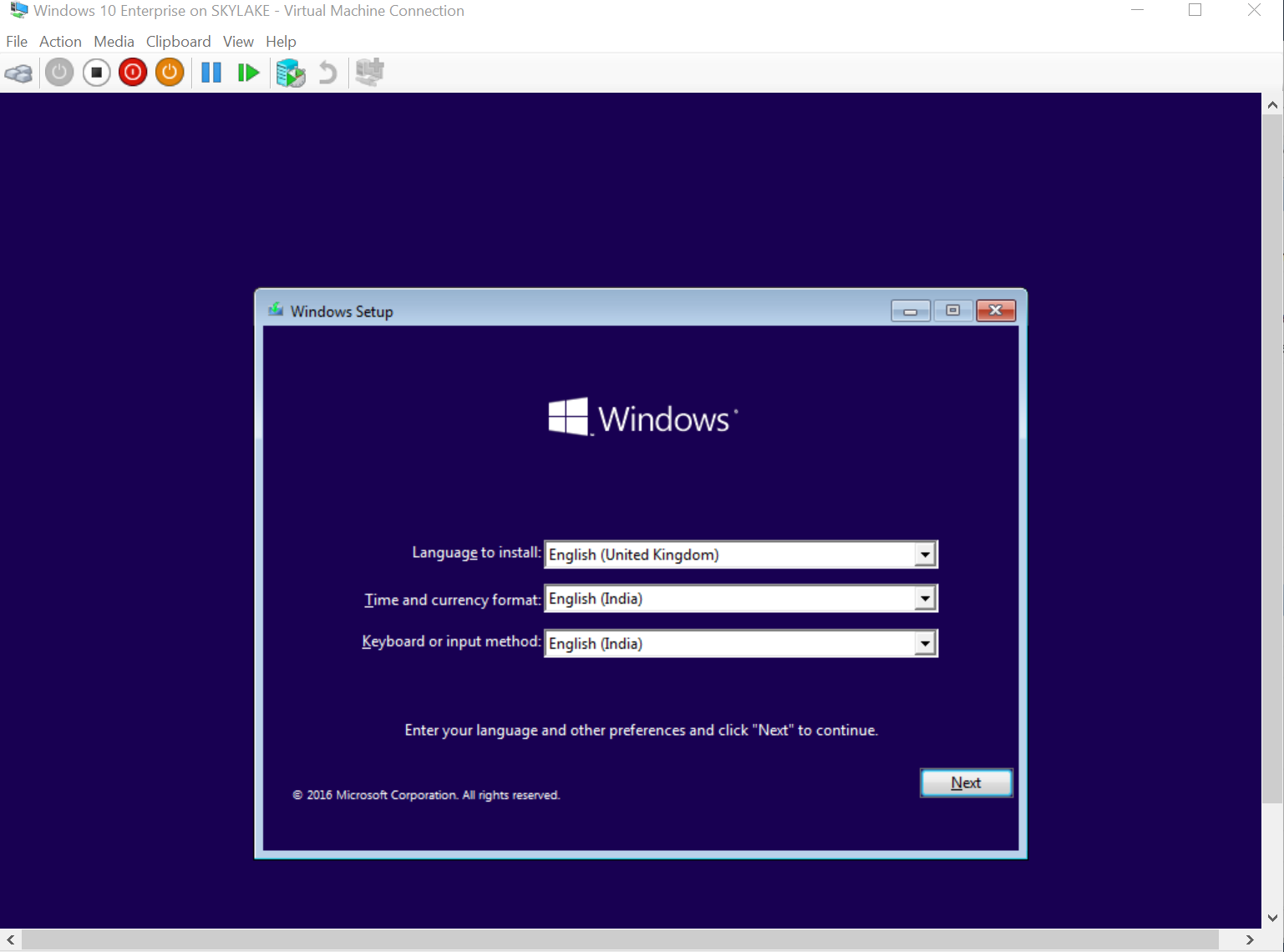

Step 27 - Installation of Windows Operating system can be continued in the virtual machine.

Thank You for being with me.
— Divyaprakash Shamrao Koli (Narmada)
